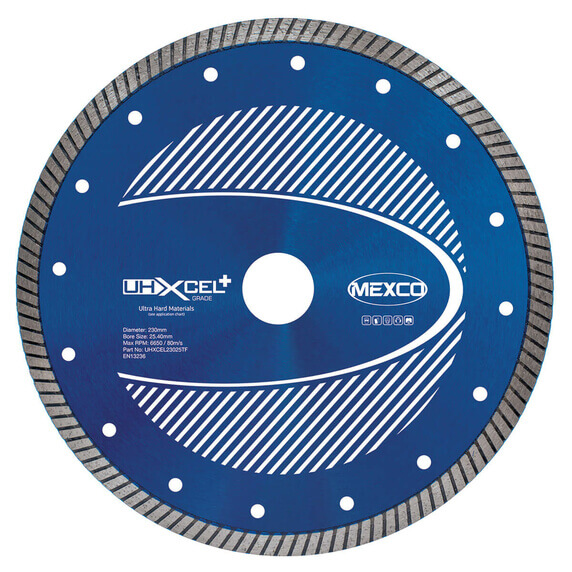

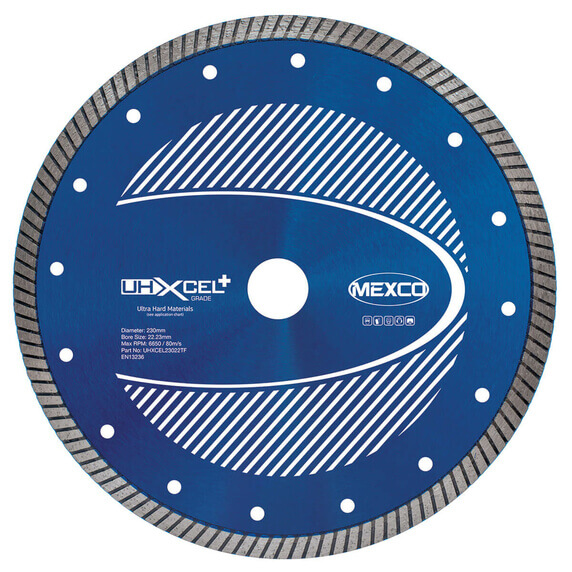

Mexco UHXCEL+ 230mm Ultra Hard Plus Diamond Blades
Order in next:
Summary
- Best-in-class 230mm diamond blades
- 22.23mm or 25.40mm bore size
- Ultra thin 1.6mm segment width
- Suitable for cutting porcelain, ceramic, marble & more
- Super fast cutting
- Fast waste removal
- Long life 10mm segment height
- Ventilated steel centre for rapid heat dispersion
- Chip reduction segment
- Suitable for angle grinders, tile saws & bench saws
- Wet or dry use
Delivery Options
Specification
Diameter: 200mm (8 inch)
Segment Height: 10mm
Segment Width: 1.4mm
Bore Size: 22.23mm (SKU UHXCEL23022TF) / 25.40MM (SKU UHXCEL23025TF)
Dry / Wet: Can be used dry. Wet cut advised on diameters above 125mm
Grade: XCEL
Gullet Type: N/A
Recommended Tool: Angle Grinder, Tile Saw, Bench Saw
Segment Attachment: Sintered
Segment Type: Continuous Castellated Turbo Rim
Undercutting Protection: No
Ventilation: Yes
| Range: | XCEL |
|---|---|
| Applications: | Ultra Hard Materials |
| Diameter (mm): | 200 |
| Bore Size (mm): | 22.23 |
| Bore Size (mm): | 25.40 |
| Materials: | Porcelain |
| Materials: | Marble Tiles |
| Materials: | Ceramic Tiles |
| Materials: | Ductile Iron |
| Materials: | Granite |
| Materials: | Class A Engineering Brick |
| Materials: | Clay Paviours |
| Materials: | Clay Pipes Vitrified |
| Materials: | Clay Roof Tiles |
| Materials: | Quarry Tiles |
| Materials: | Non Abrasive Indian Sandstone |
| Materials: | Hard Facing Brick |
| Materials: | Medium Facing Brick |
| Materials: | Hard Slate |
| Suitable Tool: | Angle Grinder |
| Suitable Tool: | Tile Saw |
| Suitable Tool: | Bench Saw |
| Materials: | Hard Marble |
0 Reviews
There are currently no reviews for this product
Write a review
Mexco UHXCEL+ 230mm Ultra Hard Plus Diamond Blades
High quality cutting discs for ceramics, porcelain, marble & more
Mexco UHXCEL+ Ultra Hard Plus Diamond Blades have been developed for fast cutting of ultra hard materials such as hard natural stone products and man-made fired materials.
These diamond discs can be used in tile saws, angle grinders and bench saws to cut granite, porcelain, marble, ceramic tiles, clay roof tiles, and more. These 230mm cutting discs are available with a bore size of 22.23mm or 25.40mm and they have an ultra-thin 1.6mm segment width.
Mexco UHXCEL Plus 230mm cutting blades deliver fantastic cutting performance, a super clean cut and they ensure a noticeable reduction in chipping.
Perfect for: Tile Fitters, Roofers, Kitchen Fitters, Stone Workers, Plumbers, Civil Engineers and General Building Contractors.
Advisory: Maximum recommended cutting depth: 20mm.
About the Mexco XCEL Grade of Diamond Blades
Mexco XCEL cutting discs are simply the best in class, due to an uncompromised use of raw materials in their manufacture. They offer the user a diamond cutting or drilling experience that is faster and cleaner resulting in an optimum cost per cut.
Applications
- Porcelain
- Hard Marble
- Marble Tiles
- Ceramic Tiles
- Ductile Iron
- Granite
- Class A Engineering Brick
- Clay Paviours
- Clay Pipes Vitrified
- Clay Roof Tiles
- Quarry Tiles
- Non Abrasive Indian Sandstone
- Hard Facing Brick
- Medium Facing Brick
- Hard Slate
