Blue Diamond Cushion Link Solid Top Floor Mat - Static Dissipative
Order in next:
Summary
- Heavy-duty rubber floor mats
- Static dissipative design
- Ideal for electrostatically sensitive environments
- Textured finish for traction
- Anti fatigue & anti slip surface
- Chemical resistant
- Modular design
- Suitable for trolleys & wheeled trucks
- Bevel edges available
- Common grounding point cord socket available
- Quantity discount available!
Delivery Options
Specification
SKU: CLS36SGP
Dimensions: 92 x 92 cm
Thickness: 19cm
Weight: 12.7kg
Material: Natural rubber, recycled rubber & nitrile rubber
Installation: Interlocking / loose lay
Slip resistant: Excellent slip resistance to level 3.
Anti-fatigue: Excellent anti-fatigue properties, resistant to level 3
Wear resistant: Excellent wear resistance to level 3, suitable for heavy footfall
Chemical resistant: Yes, limited resistance to chemicals, oils and coolants
Connectable: Yes, the mats are modular and interlocking with bevelled edges to create ramps to all sides
Cut to size: Yes
Disability friendly: Yes, using bevel edges, the mats have ramped edges making them suitable for wheelchair use
Dry area: Yes
Heavy area: Yes
Wheeled area: Yes
Impact resistant: Yes
Non-static (ESD): Yes
Sustainability:
Nature friendly, biodegradable and recyclable
REACH (Registration, Evaluation, Authorisation and Restrictions of Chemicals)
Contributes to a cleaner environment by reducing the need to use cleaning chemicals
Temperature resistance: -20°C to +130°C
Cleaning: Wash with cold water, use vacuum cleaner, or use a pressure pump to remove dirt. The use of hard detergents is not recommended.
Product testing:
Tensile strength: 3-3.5 Mpa
Hardness: 55+ Shore A
DIN abrasion loss mm3: 250-300
Elongation at break: 200-250%
Features
- 92cm x 92cm heavy duty rubber floor mat tiles.
- Static dissipative design, which meets IEC61340-4-1 standard, measured resistance Rg 106-109 Ω, Rp 106-109 Ω.
- Textured surface for traction to prevent slips and falls.
- Excellent anti-fatigue properties, for ergonomic comfort and safety in heavy duty dry industrial areas.
- Level 3 slip resistance, anti-fatigue and wear resistance. Chemical resistant.
- Modular design allows the tiles to be interlocked and edged using a simple bevel system to create any mat size and shape.
- Compatible with other mats in the Cushion Link range.
- Overall height 19mm.
0 Reviews
There are currently no reviews for this product
Write a review
Blue Diamond Cushion Link Static Dissipative Floor Mats
Heavy-duty industrial rubber floor mats for electrostatically sensitive environments
Blue Diamond Cushion Link anti-fatigue rubber floor mats offer a convenient modular floor matting system. Any number of these mats, along with the other style of mats in the cushion link range, can be connected together quickly and easily to create the perfect size for your floor space.
These Cushion Link rubber floor mat tiles measure 92cm x 92cm and 19mm thick. They are manufactured from the highest quality resilient rubber compounds and have a static dissipative design, which meets IEC61340-4-1 standard, measured resistance Rg 106-109 Ω, Rp 106-109 Ω.
This means that the tiles are perfect for electrostatically sensitive environments such as cleanrooms and electronic equipment assembly lines.
These cushion link rubber floor mats are slip resistant, wear resistant, impact resistant and chemical resistant. The textured top surface provides fantastic anti-slip protection as well as great ergonomic comfort and safety in busy industrial areas.

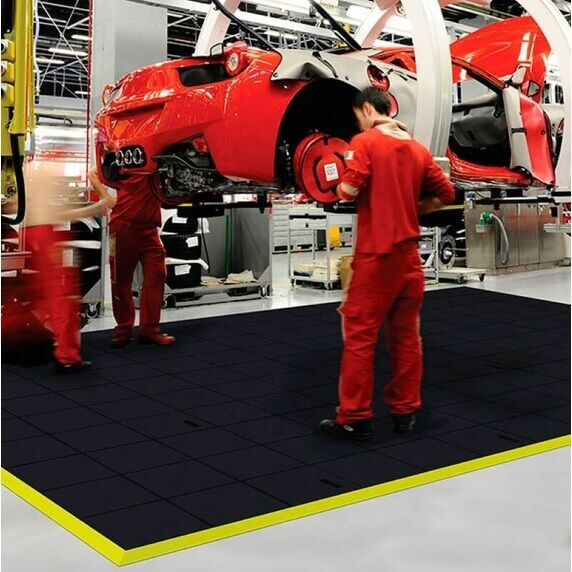

They are ideal for heavy footfall areas and can withstand the use of trolleys and wheeled trucks.
Optional accessory available: Common Grounding Point Cord – Socket
Designed with a 10mm female stud at one end to connect to 10mm male stud on an earth plug and the other, a 4mm banana socket for connection to an operator coil cord. Length: 4.5m wire for connection to the earth plug.
Bevel Edges Available
A simple bevel edging system can be used to create any size or shape with these mats. The unique interlocking mechanism along with male and female edges and bevels, provide secure connectivity.
The bevel edges (available separately) highlight the edges to the mat, prevent the edges from becoming a trip hazard, and ensure the tiles are suitable for wheeled use.
Please note there are two types of bevels – female and male. Each tile has two female and two male sides. The bevels simply click into position to create the ramped edge.
